Volkswagen Complete set to retrofit an original rear view camera with GUIDANCE Line

Handle with integrated camera

To make sure that the product will be compatible
please provide the chassis number (VIN) in the ordering process or by email.

Compatible with :

• New 2015 Sharan 7N0 / SEAT Alhambra 2015

Camera module has initial software loaded.

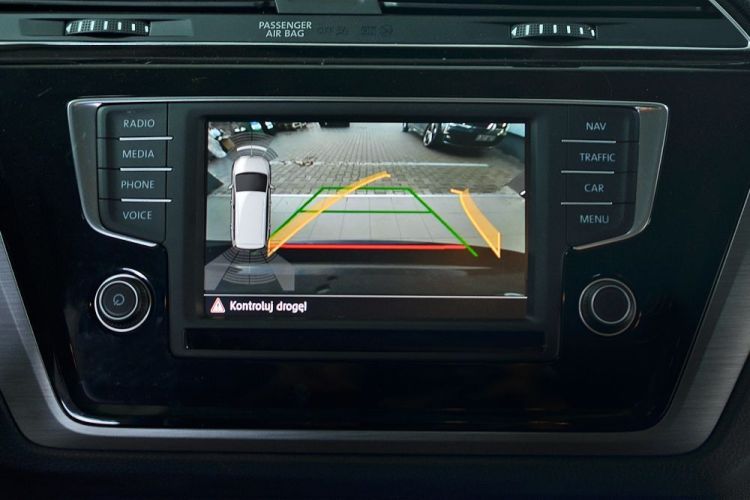

Showing the rear area on the screen of the navigation, no additional screens necessary

Automatic display switch by rear gear.

Much easier orientation due to the guiding lines and fields which are integrated into the video picture and change depending on the steering wheel angle.

Compatible with Head Unit:

• Composition Media
• Discover Media
• Discover Media Plus

Not Compatible with Head Units:

• 5G0035820 - all index
• 5G0035819 - all index
• 5G0035812 - all index

VAS / VCDS Coding after installation required

Scope of delivery :

• Camera 5N0827566
• Controller 7N0907441B
• Wiring Harness

Note

• After installation you need to code the system. Please contact an VW dealer or workshop with diagnostic software.
• On request we can perform the installation for you in our workshop
