Audi Q3 F3 Sportback APS Plus Front Parking Sensor Retrofit Kit 5QA919294B 5QA919294C 5QA919294G
Brand
Car-Systems
Upgrade your Audi Q3 F3 Sportback from factory rear PDC to the complete APS Plus front and rear parking system. Four additional front sensors provide progressive acoustic warnings and extend the optical parking display to cover obstacles around both ends of the vehicle.
The kit includes the front sensors, control unit, wiring, buzzer, holders and the correct factory-style PDC button required for the upgrade.
For Audi Q3 F3 Sportback models from MY2019 with factory rear PDC and a compatible MMI system. This is a front sensor upgrade, not a complete kit for vehicles without rear parking sensors. For MY2024-on vehicles with PR number NI1, NI7, NI8 or NI9, provide the VIN so current activation availability can be checked.
Audi Q3 F3 Sportback APS Plus Front Parking Sensor Upgrade Kit with Optical Display
Upgrade Your Audi Q3 to Front and Rear APS Plus
This retrofit kit upgrades an Audi Q3 F3 Sportback already equipped with factory rear parking sensors to the more capable APS Plus front and rear parking system.
Four additional front sensors monitor the area ahead of the vehicle, making it easier to position the Q3 in tight parking spaces and judge obstacles that cannot be seen clearly from the driver's seat.
Acoustic and Optical Parking Assistance
The completed APS Plus system combines progressive acoustic warnings with an optical parking display on the compatible factory MMI screen.
As the vehicle approaches an obstacle, the warning frequency increases. The on-screen display also identifies the sensor zones detecting an obstacle, helping the driver judge whether it is positioned near the front, rear or side of the vehicle.
Key Features
- Upgrades factory rear PDC to front and rear APS Plus
- Adds four front parking sensors
- Progressive acoustic distance warnings
- Optical front and rear parking display on the factory MMI screen
- Factory-style PDC activation button
- Vehicle-specific control unit and wiring
- Integrated operation using the vehicle's original controls and display
- Designed for the Audi Q3 F3 Sportback
Existing Rear Parking Sensors Required
This is a front upgrade kit for vehicles already fitted with factory rear PDC. It is not a complete parking sensor installation for a vehicle with no existing parking assistance.
The original rear sensors are retained and combined with the new front sensors to create the complete APS Plus system.
Compatible MMI Systems
The kit is suitable for vehicles equipped with the following factory multimedia and navigation systems:
- MMI Radio
- MMI Radio Plus
- MMI Navigation
- MMI Navigation Plus

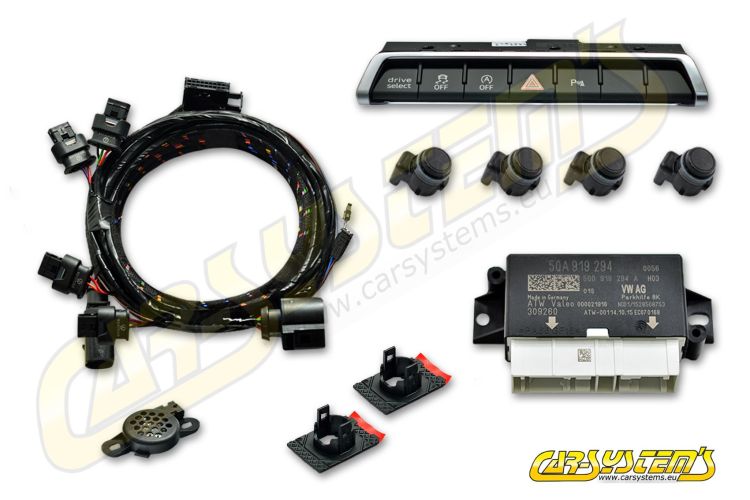

What Is Included?
- 2 × vehicle-specific wiring harnesses
- 1 × APS Plus parking control unit
- 4 × matt-black front parking sensors
- 2 × standard sensor holders
- 1 × front acoustic warning buzzer
- 1 × PDC activation button 83A925301C
The supplied control unit will be the appropriate 5QA919294B, 5QA919294C or 5QA919294G version for the vehicle specification.
Professional Installation Available
Installation involves removing and preparing the front bumper, installing the sensors and holders, routing the wiring and integrating the new components with the existing rear parking system and factory MMI.
Euro Car Electronics can professionally install and configure the complete APS Plus upgrade.
Important Information for 2024-On Vehicles
Some vehicles from model year 2024 use newer diagnostic and cybersecurity protection that may currently prevent the retrofit from being activated. This applies particularly to vehicles with the following PR numbers:
- NI8: without UNECE Cybersecurity R155 and Software Update R156, with SFD2 control units
- NI7: with UNECE Cybersecurity R155, without Software Update R156
- NI9: with UNECE Cybersecurity and Software Update regulation
- NI1: with UNECE Cybersecurity and Software Update regulation
For a 2024-on vehicle carrying one of these PR numbers, provide the VIN before ordering so current retrofit and activation availability can be checked.
Frequently Asked Questions
What does this APS Plus kit add to the vehicle?
It adds four front parking sensors, a front acoustic warning buzzer and front obstacle information to the optical parking display, upgrading the vehicle from rear-only PDC to front and rear APS Plus.
Does my Q3 need to have factory rear parking sensors?
Yes. This is a front upgrade kit for an Audi Q3 F3 Sportback already equipped with factory rear PDC. It is not intended for a vehicle without an existing rear parking system.
Will the parking sensor information appear on the MMI screen?
Yes. The APS Plus system provides an optical front and rear parking display through a compatible factory MMI system.
Which MMI systems are supported?
The supplier lists MMI Radio, MMI Radio Plus, MMI Navigation and MMI Navigation Plus as compatible systems.
Is the PDC activation button included?
Yes. The kit includes factory-style PDC push button 83A925301C along with the sensors, control unit, wiring, holders and front warning buzzer.
Why are several control-unit numbers listed?
The appropriate 5QA919294B, 5QA919294C or 5QA919294G control-unit version is selected according to the vehicle specification.
What is different about some 2024-on vehicles?
Some newer vehicles use additional diagnostic and cybersecurity protection that can prevent the retrofit from being activated. Vehicles with PR number NI1, NI7, NI8 or NI9 should be checked by VIN before purchase.
Can Euro Car Electronics install the kit?
Yes. Euro Car Electronics can install the sensors and wiring, integrate the new components with the existing rear PDC system and complete the required vehicle configuration.
| OEM Part Number | 5QA919294B 5QA919294C 5QA919294G |
|---|---|
| Brand | Car-Systems |
| Condition | Brand new |
| Coding required | Yes |
This Fits:
| Make | Model | Year |
|---|---|---|
| Audi | Q3 | 2018 |
| Audi | Q3 | 2019 |
| Audi | Q3 | 2020 |
| Audi | Q3 | 2021 |
| Audi | Q3 | 2022 |
| Audi | Q3 | 2023 |
| Audi | Q3 | 2024 |
| Audi | Q3 | 2025 |
| Audi | Q3 | 2026 |
Note:
For Audi Q3 F3 Sportback models from MY2019 with factory rear PDC and a compatible MMI system. This is a front sensor upgrade, not a complete kit for vehicles without rear parking sensors. For MY2024-on vehicles with PR number NI1, NI7, NI8 or NI9, provide the VIN so current activation availability can be checked.
Installation & Configuration
Professional installation and configuration are available through Euro Car Electronics. If you prefer to have this product professionally fitted, our team can assist with installation and any required vehicle setup.
Enquire about professional installation ↗
Coding is required after installation. Submit a coding enquiry ↗
IMPORTANT: Some products require professional installation or specific installation procedures. Please review the product information and our Warranty Support & Returns ↗ information before installation.
