This swirl flap delete kit is designed for 4.2 V8 TDI engines used across Audi, Volkswagen and Porsche platforms. The factory intake system uses swirl flaps that are known to wear over time, loosen and eventually break apart.

When this occurs, debris can be drawn into the engine, leading to serious internal damage. This kit removes the swirl flap assemblies and replaces them with a solid, reliable solution.

Unlike basic delete kits, this version includes brackets designed to prevent the common P2015 fault code associated with intake runner position limits.

This makes it suitable not only as a preventative upgrade, but also as a proper repair solution when faults are already present.

Key Benefits

• Removes failure-prone swirl flaps
• Prevents engine damage from flap ingestion
• Integrated solution for P2015 fault code
• Improves long-term engine reliability
• Suitable for standard and modified vehicles

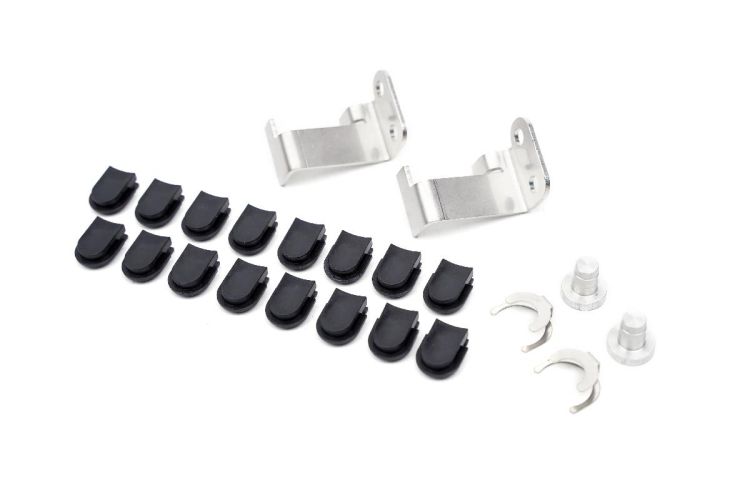

Scope of delivery:

• 2 x Blanking caps with retaining clips
• 2 x P2015 fix brackets
• 16 x Inlet manifold separators
• 2 x Inlet manifold gaskets (optional depending on selection)

Compatibility Notes:

Compatible with the following inlet manifold part numbers:

Left Hand:
057129711AK, 057129711AL, 057129711AM, 057129711BC, 057129711AH

Right Hand:
057129712AG, 057129712P, 057129712Q, 057129712T, 057129712N

This Kit will fit the following Vehicles:

• Audi A8 (D3 / D4) 4.2 TDI BMC (315hp) — 2005–2007
• Audi A8 (D3 / D4) 4.2 TDI BVN (322hp) — 2007–2010
• Audi A8 (D3 / D4) 4.2 TDI CDSB (351hp) — 2010–2013
• Audi A8 (D3 / D4) 4.2 TDI CTEC (385hp) — 2012–2017
• Audi S8 quattro (D3 / D4) 4.2 TDI BMC / BVN / CDSB / CTEC — 2005–2017
• Audi Q7 (4L)  4.2 TDI BTR (322hp) — 2007–2009
• Audi Q7 (4L)  4.2 TDI CCFA (340hp) — 2009–2012
• Audi Q7 (4L)  4.2 TDI CCFC (340hp) — 2009–2015
• VW Touareg (7L / 7P) 4.2 TDI CKDA (340hp) — 2010–2014
• Porsche Cayenne (958) 4.2 V8 TDI MCU.DB — 2012–2014
• Porsche Cayenne (958)  4.2 V8 TDI MCU.DC — 2014–2018
