Audi TT A3 VW Golf Polo Saab Ford Hybrid BOV T9225 GFB
Brand
GO FAST BITS
GFB Hybrid T9225 dual outlet diverter and blow off valve for selected Audi, Volkswagen, Saab and Ford turbo applications. The T9225 provides configurable recirculation and atmosphere venting for improved turbo pressure management and an audible blow off sound.
- Audi A3, 8L, 1.8T, 1996–2003
- Audi A4, B5, 1.8T, 1995–2001
- Audi A4, B6, 1.8T, 2001–2005
- Audi S3, 8L, 1.8T, 1999–2003
- Audi S4, B5, 2.7 Biturbo, 1997–2001
- Audi TT, 8N, 1.8T, 1998–2006
- Ford Falcon XR6 Turbo, BA / BF, 4.0L, 2002–2008
- Ford Falcon XR6 Turbo, FG, 4.0L, 2008–2014
- Ford Territory, SY, 4.0L Turbo, 2006–2011
- Mazda MX-5 SP Turbo, 2002
- Saab 9-3 Turbo, 1998–2002
- Saab 9-5 Turbo, 1998–2009
- Volkswagen Bora, Mk4, 1.8T, 2000–2005
- Volkswagen Golf GTI, Mk4, 1.8T, 1997–2005
- Volkswagen New Beetle, 1.8T, 1999–2010
- Volkswagen Passat, B5 / B5.5, 1.8T, 1996–2005
- Volkswagen Polo GTI, 9N3, 1.8T, 2005–2009
Suitable only for the turbocharged engine variants listed above.
Installation orientation: When replacing the factory plastic Bosch diverter valve, install the GFB valve in the opposite orientation: boost pressure must enter through the bottom of the valve and discharge through the side outlets. Incorrect orientation will prevent the valve from operating correctly.
Audi S4 B5 2.7 Biturbo: Two valves are required per vehicle.

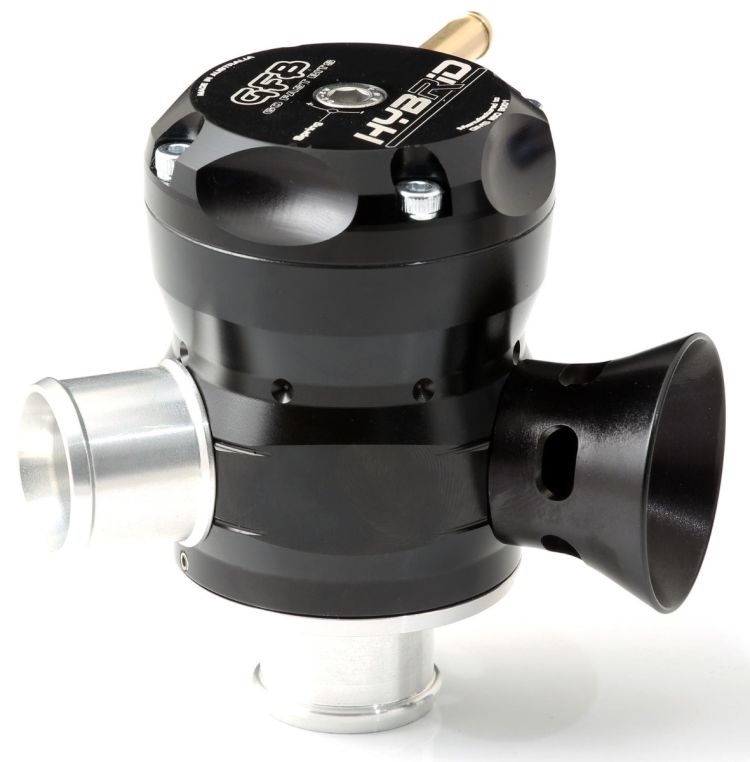

GFB Hybrid T9225 Dual-Outlet Blow-Off / Diverter Valve - Audi, VW, Saab & Ford
GFB Hybrid T9225 Dual Outlet Diverter / Blow Off Valve
The GFB Hybrid T9225 is a dual outlet diverter and blow off valve designed for selected turbocharged Audi, Volkswagen, Saab and Ford applications.
The Hybrid uses a staged dual-port design, allowing discharged boost pressure to be managed through both the recirculation and atmosphere outlets. The valve can be configured for full recirculation, full atmosphere venting or a 50/50 combination depending on the application and desired operation.
Key Features
- GFB Hybrid T9225 dual outlet valve
- Diverter valve and blow off valve functionality
- Configurable recirculation and atmosphere venting
- Full recirculation, full atmosphere or 50/50 configuration
- Provides the characteristic blow off valve sound when atmosphere venting is used
- Suitable for selected Audi, Volkswagen, Saab and Ford turbo applications
- Direct replacement for selected Bosch-style 25mm diverter valves
- Suitable for custom hose-mount installations
Vehicle Applications
- Audi B5 1.8T 1995–2001
- Audi B6 1.8T 2001–2005
- Audi TT 8N 1.8T 1998–2006
- Saab 9-3 Turbo 1998–2002
- Saab 9-5 Turbo 1998–2009
- Volkswagen Bora Mk4 1.8T 2000–2005
- Ford Australia XR6 BA-BF 4.0L Turbo 2002–2008
Important Installation Information
When replacing a Bosch-style diverter valve, the GFB Hybrid must generally be installed in the opposite orientation to the original Bosch valve. Boost pressure should enter through the base of the GFB valve and discharge through the side outlets.
Incorrect installation orientation can prevent the valve from operating correctly.
Blow Off Sound
The T9225 can be configured to vent air to atmosphere, providing the characteristic blow off valve sound. It can also be configured for full recirculation or a 50/50 combination, allowing the valve to be tailored to the vehicle and application.
Compatibility
Vehicle compatibility depends on the specific engine, factory diverter valve and installation configuration. Please check the vehicle application and existing valve before ordering.
| Brand | GO FAST BITS |
|---|---|
| Condition | Brand new |
| Rack | 2 |
| Shelf | 1 |
| Shelf side | Front |
This Fits:
| Make | Model | Year |
|---|---|---|
| Audi | A3 | 1996 |
| Audi | A3 | 1997 |
| Audi | A3 | 1998 |
| Audi | A3 | 1999 |
| Audi | A3 | 2000 |
| Audi | A3 | 2001 |
| Audi | A3 | 2002 |
| Audi | A3 | 2003 |
| Audi | A4 | 1995 |
| Audi | A4 | 1996 |
| Audi | A4 | 1997 |
| Audi | A4 | 1998 |
| Audi | A4 | 1999 |
| Audi | A4 | 2000 |
| Audi | A4 | 2001 |
| Audi | A4 | 2002 |
| Audi | A4 | 2003 |
| Audi | A4 | 2004 |
| Audi | A4 | 2005 |
| Audi | S3 | 1999 |
| Audi | S3 | 2000 |
| Audi | S3 | 2001 |
| Audi | S3 | 2002 |
| Audi | S3 | 2003 |
| Audi | S4 | 1997 |
| Audi | S4 | 1998 |
| Audi | S4 | 1999 |
| Audi | S4 | 2000 |
| Audi | S4 | 2001 |
| Audi | TT | 1998 |
| Audi | TT | 1999 |
| Audi | TT | 2000 |
| Audi | TT | 2001 |
| Audi | TT | 2002 |
| Audi | TT | 2003 |
| Audi | TT | 2004 |
| Audi | TT | 2005 |
| Audi | TT | 2006 |
| Saab | 9-3 | 1999 |
| Saab | 9-3 | 2000 |
| Saab | 9-3 | 2001 |
| Saab | 9-3 | 2002 |
| Saab | 9-5 | 1998 |
| Saab | 9-5 | 1999 |
| Saab | 9-5 | 2000 |
| Saab | 9-5 | 2001 |
| Saab | 9-5 | 2002 |
| Saab | 9-5 | 2003 |
| Saab | 9-5 | 2004 |
| Saab | 9-5 | 2005 |
| Saab | 9-5 | 2006 |
| Saab | 9-5 | 2007 |
| Saab | 9-5 | 2008 |
| Saab | 9-5 | 2009 |
| Volkswagen | Beetle | 1998 |
| Volkswagen | Beetle | 1999 |
| Volkswagen | Beetle | 2000 |
| Volkswagen | Beetle | 2001 |
| Volkswagen | Beetle | 2002 |
| Volkswagen | Beetle | 2003 |
| Volkswagen | Beetle | 2004 |
| Volkswagen | Beetle | 2005 |
| Volkswagen | Beetle | 2006 |
| Volkswagen | Beetle | 2007 |
| Volkswagen | Beetle | 2008 |
| Volkswagen | Beetle | 2009 |
| Volkswagen | Beetle | 2010 |
| Volkswagen | Golf GTI | 2002 |
| Volkswagen | Golf GTI | 2003 |
| Volkswagen | Golf GTI | 2004 |
| Volkswagen | Golf GTI | 2005 |
| Volkswagen | Passat | 1997 |
| Volkswagen | Passat | 1998 |
| Volkswagen | Passat | 1999 |
| Volkswagen | Passat | 2000 |
| Volkswagen | Passat | 2001 |
| Volkswagen | Passat | 2002 |
| Volkswagen | Passat | 2003 |
| Volkswagen | Passat | 2004 |
| Volkswagen | Passat | 2005 |
| Volkswagen | Polo GTI | 2005 |
| Volkswagen | Polo GTI | 2006 |
| Volkswagen | Polo GTI | 2007 |
| Volkswagen | Polo GTI | 2008 |
| Volkswagen | Polo GTI | 2009 |
Note:
- Audi A3, 8L, 1.8T, 1996–2003
- Audi A4, B5, 1.8T, 1995–2001
- Audi A4, B6, 1.8T, 2001–2005
- Audi S3, 8L, 1.8T, 1999–2003
- Audi S4, B5, 2.7 Biturbo, 1997–2001
- Audi TT, 8N, 1.8T, 1998–2006
- Ford Falcon XR6 Turbo, BA / BF, 4.0L, 2002–2008
- Ford Falcon XR6 Turbo, FG, 4.0L, 2008–2014
- Ford Territory, SY, 4.0L Turbo, 2006–2011
- Mazda MX-5 SP Turbo, 2002
- Saab 9-3 Turbo, 1998–2002
- Saab 9-5 Turbo, 1998–2009
- Volkswagen Bora, Mk4, 1.8T, 2000–2005
- Volkswagen Golf GTI, Mk4, 1.8T, 1997–2005
- Volkswagen New Beetle, 1.8T, 1999–2010
- Volkswagen Passat, B5 / B5.5, 1.8T, 1996–2005
- Volkswagen Polo GTI, 9N3, 1.8T, 2005–2009
Suitable only for the turbocharged engine variants listed above.
Installation orientation: When replacing the factory plastic Bosch diverter valve, install the GFB valve in the opposite orientation: boost pressure must enter through the bottom of the valve and discharge through the side outlets. Incorrect orientation will prevent the valve from operating correctly.
Audi S4 B5 2.7 Biturbo: Two valves are required per vehicle.
Installation & Configuration
Professional installation and configuration are available through Euro Car Electronics. If you prefer to have this product professionally fitted, our team can assist with installation and any required vehicle setup.
Enquire about professional installation ↗
IMPORTANT: Some products require professional installation or specific installation procedures. Please review the product information and our Warranty Support & Returns ↗ information before installation.
