Cam Dome Security Camera 2K HD G5 UniFi Protect Ubiquiti
Brand
Ubiquiti
Ubiquit UniFi Protect Cam Dome Camera G5, 2K HD PoE Ceiling Camera, Polycarbonate Housing, Partial Outdoor Capable, Vandal resistant

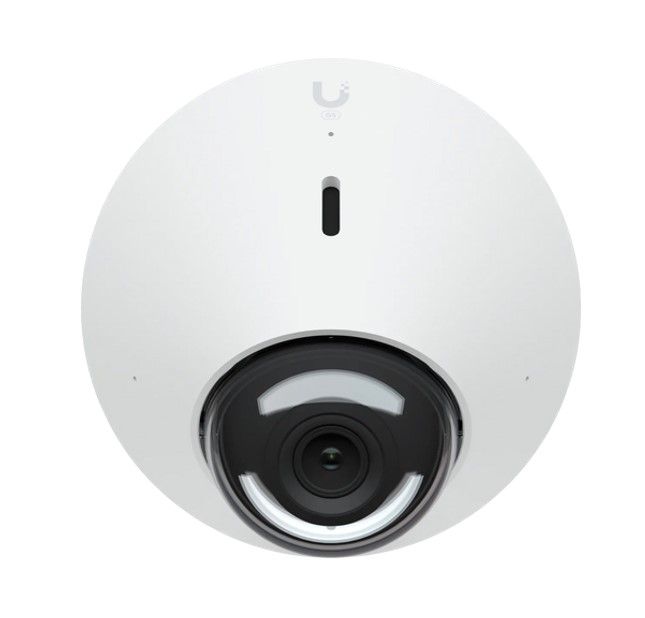

Ubiquiti UniFi Protect Cam Dome Camera G5
UniFi Protect G5 Dome (UVC-G5-Dome) is a compact, weather-resistant dome camera designed for reliable, around-the-clock surveillance in indoor and outdoor environments. Featuring HD video capture and integrated infrared LEDs, it delivers clear daytime footage and dependable night-time visibility.
Built with a durable IP-rated enclosure and IK-rated vandal resistance, the G5 Dome is well suited for high-traffic areas such as offices, retail spaces, entryways, and communal zones. Its low-profile dome design allows for discreet installation while maintaining wide coverage.
Designed for installation flexibility, the G5 Dome supports wall or ceiling mounting and includes an adjustable mount for precise camera alignment. Power and data are delivered via 802.3af Power over Ethernet (PoE), simplifying installation and reducing cable clutter.
Key Features
- HD video resolution for clear, detailed monitoring
- Integrated infrared LEDs for night-time surveillance
- Weather-resistant and vandal-resistant dome housing
- Built-in microphone for audio capture
- Powered via 802.3af PoE
- Managed centrally through the UniFi Protect web and mobile applications
Technical specification
Mechanical
| Dimensions | Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight | Without mount: 370 g (13.1 oz) With mount: 390 g (13.8 oz) |
| Enclosure Material | Aluminium alloy, polycarbonate, hard-coated dome |
| Mount Material | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
Optics
| Sensor | 5MP CMOS |
| Lens | Fixed focal length |
| View Angle | H: 102.4° V: 71.4° D: 134.3° |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Video
| Video Compression | H.264 |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. Frame Rate | 30 FPS |
| Image Settings | Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
System
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking Interface | 10/100 MbE RJ45 port |
| Max. Power Consumption | 5W |
| Power Method | PoE |
| Supported Voltage Range | 37–57V DC |
| LED | R / G / B / W |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Operating Humidity | 0 to 90% non-condensing |
| Certifications | FCC, IC, CE |
Audio
| Microphone | Yes (can be disabled) |
| Speaker | Yes |
Software
| Web Application | UniFi Protect: Version 2.2.7 or 2.7.28 and later |
| Mobile App | UniFi Protect iOS™ and Android™: Version 1.10.0 and later |
| OEM Part Number | NHU-UVC-G5-DOME |
|---|---|
| Brand | Ubiquiti |
| Condition | Brand new |
Note:
WARNING: This item requires professional installation to protect the warranty.
NOTE: Euro Car Electronics offers Installation Australia wide. Call 07 5479 5555 or find installer.
