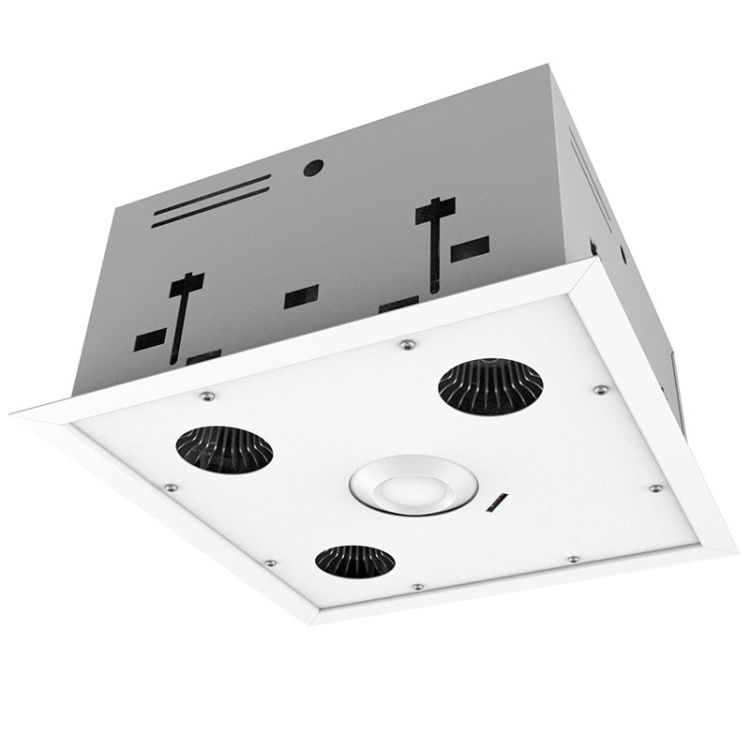

Enforcer E300CPM/MCU Compressed Particle Module is a professional, hard-wired deterrent that floods the protected area with a dense emission the moment it’s triggered—instantly reducing visibility to repel intruders and protect assets.

How it works

The system uses Compressed Particle Module technology—compressed, food-grade powders in a compact metal cartridge—burning at a high rate to achieve rapid loss of visibility. Cartridges are user-replaceable for quick turnaround and lower ongoing cost.

Key features

• Integrated 360° motion sensor with spherical lens, temperature compensation and anti-photometric detection.
• 2 operating modes (normal/service) and 6 custom DIP-switch settings for scalable setups.
• Multiple inputs (Primary Trigger, Arm, Sec-Trigger 1/2) for alarm panel integration.
• 4 high-current main outputs and 3 high-current sub-outputs (max peak 5A each) for peripherals (strobe/siren, etc.).
• On-board supervision: Tamper, Service, Trouble; visual & audible output (strobe/siren) and dedicated system outputs (System On, Activation, Armed, Service) plus built-in service reset.
• Duress/Panic (double-poll terminals), 24-hour.
• International standards/approvals listed by the manufacturer (RoHS, ЯU, CЄ, ISO 9000).

Electronics

• ARM® Cortex®-M0+ 32-bit MCU up to 64 MHz with MPU, flash/SRAM, DMA, 12-bit ADC (up to 16 channels), up to 59 fast I/Os, clock management and dual watchdogs.

Housing

• Compact, powder-coated metal enclosure; lightweight; multiple mounting options; off-white finish.

Typical applications

• Private car garages and vehicle storage; performance/exotic car workshops and showrooms.
• High-value retail (e.g., jewellery/watches), convenience stores, power-tools retailers and more.

Certified by the manufacturer as non-toxic for humans and animals when used as directed. Professional installation recommended.
