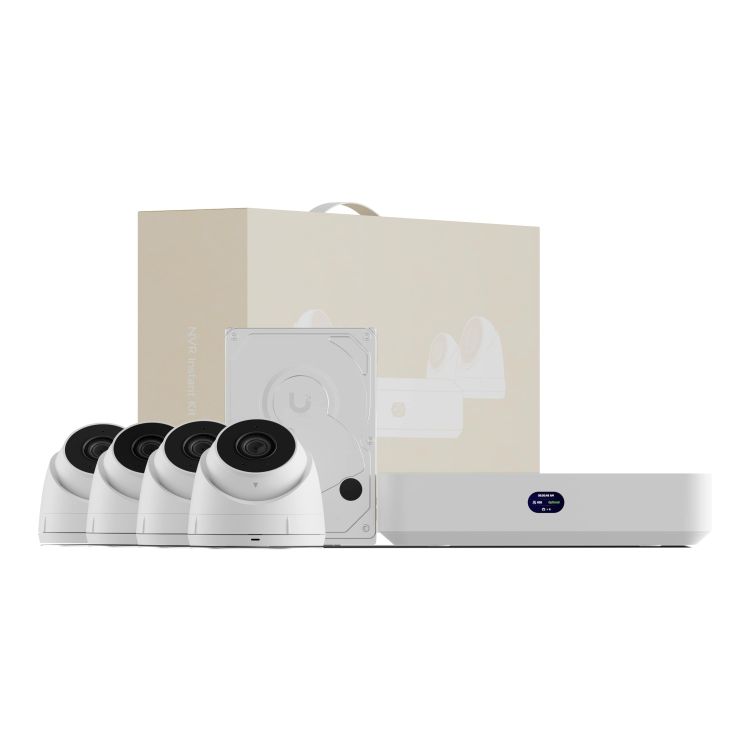

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Ubiquiti Network Video Recorder Instant Kit
Ubiquiti UNVR-Instant-Kit offers a complete, professional-grade surveillance setup that combines the compact UniFi Protect NVR Instant with four G5 Turret Ultra cameras and a pre-installed 1TB hard drive — all in one ready-to-deploy package. Designed for rapid installation and seamless integration, this kit removes the guesswork from selecting compatible components while ensuring optimal performance across every device.
The G5 Turret Ultra cameras deliver outstanding image clarity and reliable operation in any environment, while the NVR Instant manages video recording, storage, and system control in a compact, modern design that fits easily into home or business setups.
Main Features
- All-in-one surveillance kit – includes NVR, four G5 Turret Ultra cameras, and 1TB storage, ready for immediate use.
- Effortless installation – plug-and-play design with no extra components required.
- 1TB built-in storage – ample capacity for long-term video retention.
- Compact NVR form factor – integrates neatly into any UniFi network environment.
- Centralized management – full control via the UniFi Protect application for simple monitoring and configuration.
- Network-ready – connects to a Gateway or Layer 3 switch for full integration into existing infrastructure.
Perfect for small businesses, retail outlets, offices, and modern homes, the UNVR-Instant-Kit delivers enterprise-grade surveillance performance without unnecessary complexity. Its tight integration with the UniFi ecosystem allows unified management of cameras and networking equipment through a single intuitive interface. Whether you’re securing entrances, monitoring workspaces, or safeguarding valuable assets, this plug-and-play system delivers professional protection with the simplicity and reliability UniFi Protect is known for.
Network Video Recorder Instant
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect: Yes Access: Yes |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, DIN rail mount (Included) |
| Door Access Support | Yes |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W* *Excluding PoE output & HDD power consumption |
| Power Method | Universal AC input, 100–240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet, Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet, PoE |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety |
G5 Turret Ultra Cameras
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 2K (4MP 2688 x 1512, 16:9) |
| Field of View | H: 102.4° V: 54.9° D: 120.6° |
| Audio | Integrated Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Sold separately) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video | Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay Max. Frame Rate: 30 FPS |
| Optics | Sensor: 1/2.4" CMOS Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Dual-core ARM® Cortex®-A7 |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminium alloy, UV-stabilised polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Cable | Connector Type: RJ45 Diameter: 5 mm (0.2") Length: 30 cm (1 ft) |
| Jacket Material | Polycarbonate Jacket Enclosure: Ø20 x 70.6 mm (0.8 x 2.8") Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Ambient Operating Humidity | 0 to 90% non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Hard Drive (1TB)
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 hours |
| Ambient Operating Temperature | 0 to 65°C (32 to 149°F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
| OEM Part Number | NHU-UNVR-INSTANT-KIT |
|---|---|
| Brand | Ubiquiti |
| Condition | Brand new |
