UNAS Pro 2U Rack-mount 7 HDD NAS Ubiquiti
Brand
Ubiquiti
Ubiquiti UNAS Pro 2U Rack-mount NAS, 7x 2.5/3.5" Drive Bays &10 Gbps Performance Designed For Large-scale File Storage & Sharing

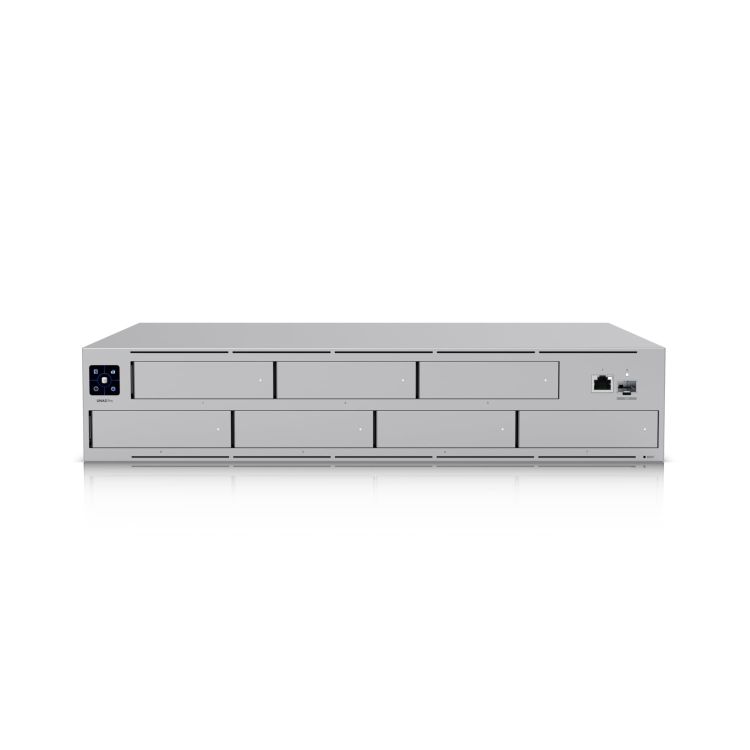

Ubiquiti UNAS Pro 2U Rack-mount NAS
Ubiquiti UniFi UNAS Pro (UNAS-Pro) is a 2U rack-mount network-attached storage (NAS) system built for fast, large-scale file storage and sharing within the UniFi ecosystem. With support for (7) 2.5"/3.5" HDD or SSD bays and a high-speed 10G SFP+ uplink, it’s designed for organisations that need reliable performance, centralised access, and scalable capacity in a clean, professional rack format.
UNAS Pro runs UniFi Drive, providing a streamlined interface for managing users, permissions, personal/shared drives, and advanced storage features including RAID 5 / RAID 6 / RAID 10, hot spare support, snapshots, and file encryption. It also supports common file protocols like SMB and NFS for easy integration with Windows, macOS, Linux, and mixed environments.
For resilience, UNAS Pro supports power redundancy via a dedicated USP-RPS input (requires compatible redundancy hardware). A built-in 1.3" touchscreen provides quick local status visibility, while remote management is available through UniFi.
Specifications
Overview
| Form Factor | Rack mount (2U) |
| Dimensions | 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4") |
| Storage Capacity | (7) 3.5" drive bays |
| Networking Interface | (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M) |
| Power Redundancy | Yes |
Hardware
| Drive Support | (7) 2.5"/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max, 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LEDs | Ethernet, SFP+, HDD, RPS |
| Ambient Operating Temperature | -5 to 40°C (23 to 104°F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC, Anatel: 01886-25-08356 |
Software
| Application | UniFi Drive |
| Application Requirements | UniFi Drive version 1.16.0 and later |
| Supported File Protocols | SMB, NFS |
| RAID Types | RAID 5, RAID 6, RAID 10 |
| RAID Group | Multiple |
| Hot Spare Support | Yes |
| Personal Drive & Shared Drive | Yes |
| File Encryption | Yes |
| Snapshots | Yes |
| Share Links | Yes |
| Time Machine Backup | Yes |
| Client App Support | Yes |
| User Groups | Yes |
| Backup Targets | Remote UNAS CIFS/SMB Server Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi) |
| OEM Part Number | NHU-UNAS-PRO |
|---|---|
| Brand | Ubiquiti |
| Condition | Brand new |
Note:
WARNING: This item requires professional installation to protect the warranty.
NOTE: Euro Car Electronics offers Installation Australia wide. Call 07 5479 5555 or find installer.
