VW Golf 5 6 GTI 2.0 TSI TFSI Gauge Port Boost Tap 5800 GFB
Brand
GO FAST BITS
- VW Golf GTI Mk6 2.0TSI 2008 - 2013
- VW Golf GTI Mk5 2.0TFSI 2004 - 2009
Gauge Port Boost Tap Volkswagen Golf GTI Mk V 2.0TFSI Mk VI 2.0 TSI

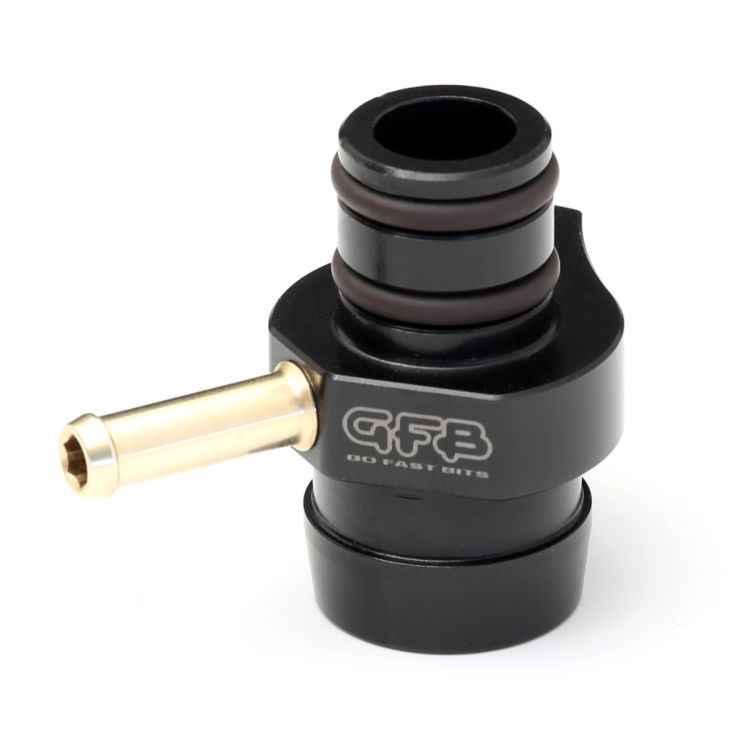

The GFB VAG Mk5/Mk6 Boost Gauge Tap provides a clean and straightforward manifold pressure reference for 2.0 TSI and FSI engines, without the need to cut or permanently modify factory hoses.
Installation is tool-free, fully reversible, and takes around 10 seconds. The tap is supplied as a single clip-on component, ready to fit straight out of the packaging.
A ΒΌβ forward-facing hose barb is used to improve hose routing and help prevent oil from collecting in the bottom of the vacuum line.
Sealing is handled by two Viton O-rings, selected for their resistance to oil and heat. The body is CNC machined from 6262-T6 billet aluminium and fitted with a brass hose barb for durability and secure hose retention.
Finished in black anodising and laser engraved with the GFB logo, the boost gauge tap blends neatly into the engine bay with an OEM-style appearance.
Removal is quick and simple, leaving no trace that the adaptor was ever installed.
Manufactured in Australia, this component is CNC machined and produced under a QMS ISO9001 quality system.
| OEM Part Number | 5800 |
|---|---|
| EAN | 9328022009568 |
| Brand | GO FAST BITS |
| Condition | Brand new |
| Country of Manufacture | Australia |
This Fits:
| Make | Model | Year |
|---|---|---|
| Volkswagen | Golf GTI | 2004 |
| Volkswagen | Golf GTI | 2005 |
| Volkswagen | Golf GTI | 2006 |
| Volkswagen | Golf GTI | 2007 |
| Volkswagen | Golf GTI | 2008 |
| Volkswagen | Golf GTI | 2009 |
| Volkswagen | Golf GTI | 2010 |
| Volkswagen | Golf GTI | 2011 |
| Volkswagen | Golf GTI | 2012 |
| Volkswagen | Golf GTI | 2013 |
Note:
- VW Golf GTI Mk6 2.0TSI 2008 - 2013
- VW Golf GTI Mk5 2.0TFSI 2004 - 2009
WARNING: This item requires professional installation to protect the warranty.
NOTE: Euro Car Electronics offers Installation Australia wide. Call 07 5479 5555 or find installer.
