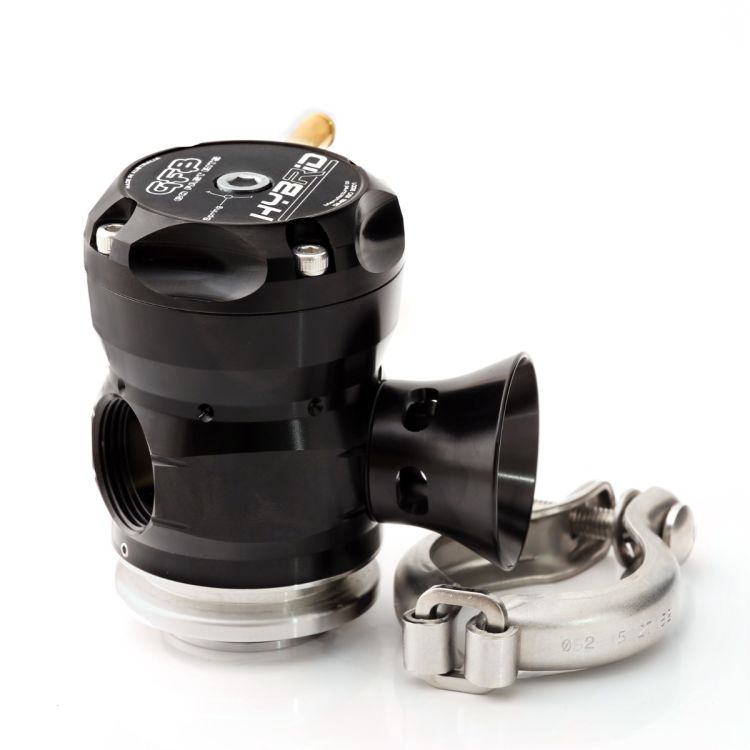

Weld on Dual Outlet Valve T9219 GFB
Brand
GO FAST BITS
The GFB T9219 Hybrid Blow-Off Valve is a universal weld-on solution that combines adjustable blow-off sound with controlled boost release, making it ideal for custom turbo setups where drivability and sound control are equally important.
The T9219 kit comes with just the valve and v-band clamp. To finish the installation, you will need to purchase the appropriate weld-on flange and outlet fitting to suit your specific application. This saves you paying more for extra adaptors that you don’t end up using.
GFB T9219 Hybrid Blow-Off Valve – Universal Weld-On Application
Hybrid Blow-Off Valve for Custom Turbo Builds
Custom turbocharged setups often require a flexible blow-off valve solution that can be tailored to suit the engine, intake layout, and desired sound level. The GFB T9219 Hybrid Blow-Off Valve is designed specifically for weld-on applications, offering both recirculation and atmosphere venting in one configurable valve.
Unlike fixed recirculating or full atmospheric valves, the Hybrid design allows controlled release of boost pressure while helping maintain stable drivability on airflow-metered systems.
Hybrid Dual Outlet Design
The T9219 features a staged dual outlet configuration where the recirculation port opens before the atmosphere port. This staged operation helps reduce the rich running and hesitation commonly associated with fully vent-to-atmosphere valves on MAF-equipped vehicles.
Configurable Venting Options
- Full recirculation for quiet, OEM-style operation
- 50/50 recirculation and atmosphere venting for balanced sound
- Full atmosphere venting for maximum blow-off sound
Key Benefits
- Universal weld-on design for custom turbo applications
- Adjustable blow-off sound without sacrificing drivability
- Staged venting to help minimise stalling and hesitation
- Suitable for high-boost and modified engines
- Durable construction for high-heat turbo environments
Ideal for Fabricated Intake Systems
The T9219 is supplied as a valve-only solution, allowing fabricators to weld the appropriate flange into custom intercooler piping or intake plumbing. This makes it a versatile choice for aftermarket turbo conversions and motorsport applications.
Available Weld-On V-Band Flange Materials
- 6061 Aluminium – Part #5352
- 304 Stainless Steel – Part #5353
Outlet Sizes Available
- 20 mm – Part #5220
- 25 mm – Part #5225
- 27 mm – Part #5227
- 30 mm – Part #5230
- 33 mm – Part #5233
- 38 mm – Part #5238
Hose Plug Sizes (for 100% Atmosphere Venting)
If you wish to block the recirculation hose and configure the Hybrid valve for full vent-to-atmosphere operation, the following hose plug sizes are available:
- 20 mm – Part #5520
- 25 mm – Part #5525
- 27 mm – Part #5527
- 30 mm – Part #5530
- 33 mm – Part #5533
- 38 mm – Part #5538
| OEM Part Number | T9219 |
|---|---|
| EAN | 9328022002637 |
| Brand | GO FAST BITS |
| Condition | Brand new |
| Country of Manufacture | Australia |
Note:
The T9219 kit comes with just the valve and v-band clamp. To finish the installation, you will need to purchase the appropriate weld-on flange and outlet fitting to suit your specific application. This saves you paying more for extra adaptors that you don’t end up using.
WARNING: This item requires professional installation to protect the warranty.
NOTE: Euro Car Electronics offers Installation Australia wide. Call 07 5479 5555 or find installer.
