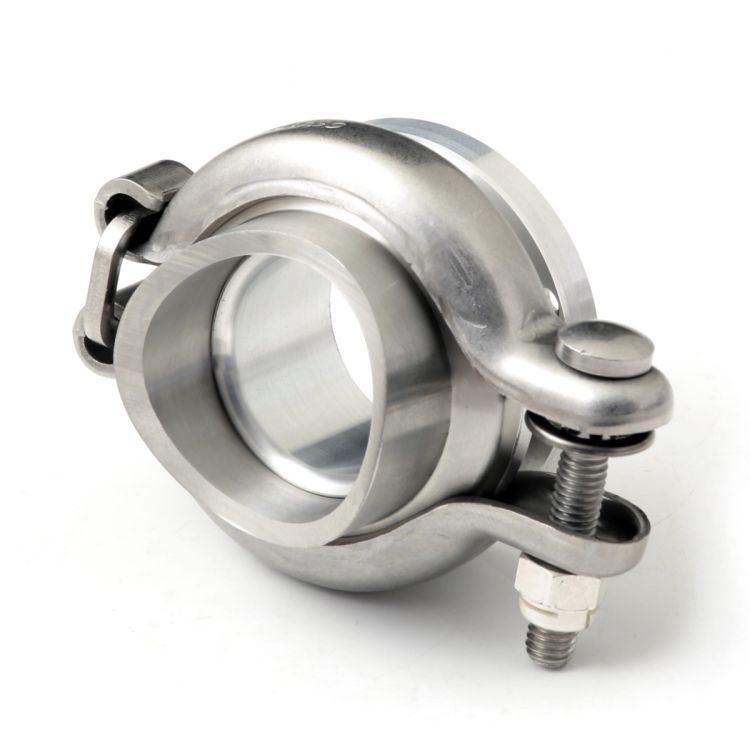

Stainless Steel V-Clamp Weld-On Mount for GFB Blow-Off Valves

The GFB 5613 V-Clamp Weld-On Kit is designed for custom intercooler piping where a reliable, serviceable blow-off valve mounting solution is required. It allows selected GFB blow-off valves to be securely mounted to stainless steel pipes using a compact V-clamp arrangement.

Designed for Custom Intercooler Piping

This kit is intended for vehicles with fabricated intercooler piping where a bolt-on factory flange is not available. The stainless steel weld-on flange is permanently welded to the pipe, providing a strong and precise mounting point.

Secure V-Clamp Retention

A VITON O-ring provides a reliable seal between the valve and adaptor, while the supplied stainless steel V-clamp with Aerotite locknut ensures consistent clamping force and long-term joint reliability.

Application-Specific Compatibility

Part number 5613 is specifically intended for GFB blow-off valves where the inlet is secured to the valve body using three screws. It is not universal across the entire GFB range and must be matched to the correct valve part number.

Suits the following Mach 2, Hybrid, Respons, or Deceptor Pro II blow-off valves where the existing inlet is fastened to the body with 3 screws (see related products):

• Mach 2: T9100, T9101, T9102, T9103, T9104, T9105, T9106
• Hybrid: T9200, T9201, T9203, T9204, T9205, T9208
• Respons TMS: T9000, T9001, T9002, T9003, T9004, T9005, T9006
• Deceptor Pro II: T9500, T9501, T9502, T9503, T9504, T9505
