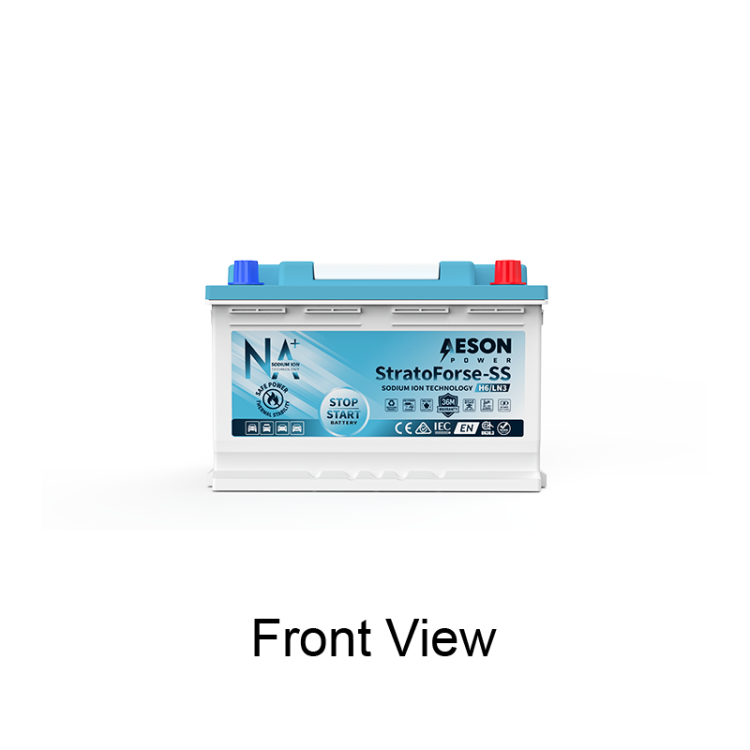

Aeson Power StratoForse H6/LN3 12V 750CCA Sodium-Ion Automotive Start Stop Battery

Upgrade a compatible Start Stop vehicle with the Aeson Power StratoForse H6/LN3 Sodium-Ion Automotive Battery.

This lightweight automotive battery uses sodium-ion NFPP technology to provide powerful cranking and cycling performance for compatible petrol, diesel, Start Stop and hybrid vehicles.

The H6/LN3 uses an AGM-compatible L3 case size, making it suitable for selected vehicles originally equipped with a matching AGM-size battery. This product uses sodium-ion chemistry and is not an AGM lead-acid battery.

The battery is supplied with a 3-year warranty for eligible private or personal vehicle use, subject to the applicable warranty terms, correct fitment, installation and charging requirements.

Key Specifications

• Brand: Aeson Power
• Series: StratoForse-SS
• Model: H6/LN3
• Application: Start Stop automotive battery
• Battery technology: Sodium-ion
• Cathode chemistry: NFPP sodium-ion
• Nominal voltage: 12V
• Cold cranking performance: 750CCA
• Battery capacity: 40Ah
• Energy capacity: 480Wh
• Reserve capacity: Approximately 86 minutes to the specified minimum voltage
• Case size: H6, LN3 or L3 AGM compatible
• Terminal type: SAE automotive posts
• Approximate weight: 6.5kg
• Rated engine starts: Up to 180,000 under specified testing conditions
• Rated cycle life: Approximately 3,000 cycles at 50 percent depth of discharge
• Maintenance-free sealed construction
• Private-use warranty: 3 years
• Commercial-use warranty: 18 months

Battery Dimensions

• Height: 185mm
• Width: 175mm
• Length: 278mm

AGM-Compatible Replacement

This H6/LN3 battery uses an AGM-compatible L3 case size and may replace a compatible AGM battery when the physical dimensions, terminal arrangement, electrical requirements and vehicle charging system are suitable.

AGM compatible refers to the battery's intended replacement application and case configuration. The StratoForse battery itself uses sodium-ion chemistry rather than AGM lead-acid chemistry.

Compatibility must be checked carefully for vehicles with intelligent alternators, battery-monitoring sensors, Start Stop systems or battery-energy-management modules.

Sodium-Ion Battery Benefits

• Significantly lighter than many comparable AGM lead-acid batteries
• No lead or liquid battery acid
• Maintenance-free operation
• Sealed and spill-resistant construction
• Fast charging and discharging capability
• Strong cyclic performance for Start Stop operation
• Low self-discharge during storage
• Improved vibration resistance
• Wide operating-temperature range
• Can recover from very low voltage when charged correctly
• Recycling-friendly battery materials

Start Stop Performance

The StratoForse-SS series is designed for vehicles requiring frequent engine restarting and increased cycling performance.

Aeson Power rates the series for up to 180,000 engine starts and approximately 3,000 cycles at 50 percent depth of discharge under its specified testing conditions.

Actual service life depends on correct battery selection, vehicle charging performance, electrical loads, operating temperature, driving conditions and storage practices.

Vehicle Compatibility

This battery may be suitable for selected vehicles originally equipped with an H6, LN3 or L3 AGM-size battery when the height, width, length, terminal arrangement, hold-down system, CCA requirement and charging specifications are compatible.

Battery fitment must not be confirmed using the H6 or LN3 designation alone. The original battery's dimensions, terminal polarity, terminal diameter, CCA rating, base hold-down and vehicle charging requirements must also be checked.

This product may be suitable for selected petrol, diesel, Start Stop and hybrid vehicles. Vehicle-specific compatibility should be confirmed before purchase.

This battery is intended for automotive engine-cranking and Start Stop applications. It is not designed for deep-cycle, UPS or standby-power use.

Coding and Battery Registration

No coding or programming is required for the battery itself.

Some vehicles require battery registration, battery-monitoring adaptation, battery-energy-management configuration or an ECU reset whenever the battery is replaced.

Where registration is required, the procedure should be completed using suitable manufacturer-compatible diagnostic equipment.

This product is AGM compatible for appropriate replacement applications but uses sodium-ion chemistry. Do not select an unsupported battery-technology setting or enter incorrect capacity information during registration.

Charging Requirements

The battery is compatible with suitable automotive alternators operating within the manufacturer's specified voltage range.

A sodium-ion-compatible or lithium-compatible smart charger is recommended for external charging.

A conventional lead-acid charger may only be used when desulphation, reconditioning, pulse-repair and recovery modes are disabled.

The recommended charging voltage is approximately 14.6V. Prolonged charging above the manufacturer's maximum voltage may reduce battery life or cause damage.

Do not use desulphation or repair modes. Sodium-ion batteries do not experience lead-acid sulphation, and high-voltage repair pulses may damage the battery cells.

Operating Information

• Working-voltage range: Approximately 6V to 14.6V
• Maximum specified voltage: 15.2V
• Recommended charging voltage: Approximately 14.6V
• Specified charging-temperature range: Approximately 0°C to 80°C
• Specified discharging-temperature range: Approximately -30°C to 80°C
• Approximate self-discharge rate: 3 percent per month without vehicle loads
• Disconnect the battery from parasitic loads during extended storage
• Recharge periodically during long-term storage
• Do not leave the battery deeply discharged for an extended period

Warranty

This StratoForse-SS automotive battery is supplied with a 3-year warranty for eligible private or personal vehicle use.

Eligible commercial or business use is covered for 18 months under the manufacturer's current warranty terms.

The warranty period begins from the original purchase date and is subject to proof of purchase, correct battery sizing, correct installation, an approved charging profile and compliance with the applicable warranty conditions.

Damage caused by incorrect installation, unsuitable charging, vehicle electrical faults, undercharging, overcharging, physical damage or use outside the published specifications may be excluded from warranty coverage.

Installation Information

Professional installation and a complete charging-system inspection are recommended.

Before installation, confirm that the replacement battery matches the original height, width, length, terminal orientation, terminal size, hold-down arrangement and CCA requirements.

When removing the existing battery, disconnect the negative terminal first and then the positive terminal. When installing the replacement battery, connect the positive terminal first and then the negative terminal.

The battery must be securely fastened using the vehicle's correct hold-down bracket. Loose installation can damage the battery, terminals or surrounding vehicle components.

After installation, check the charging voltage, cranking performance, terminal security and vehicle electrical operation. Complete battery registration or an ECU reset where required by the vehicle.
