EGR Cooler Blanking Kit for Audi B9 / C7 Platform and VW Amarok 3.0 TDI V6 engines

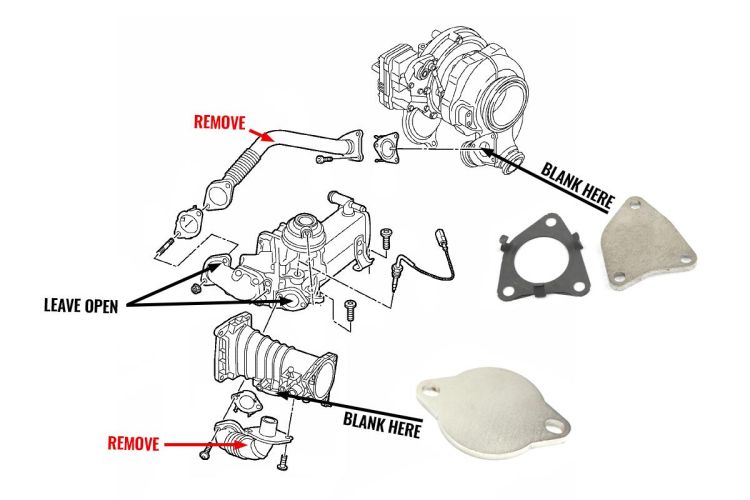

This complete kit allows removal and blanking of the Exhaust Gas Recirculation (EGR) valve and cooler on Audi and Volkswagen vehicles fitted with the 3.0 TDI V6 engine. Removing the EGR reduces intake contamination, improves engine efficiency, and eliminates common failure points in the EGR cooling system.

SCOPE OF DELIVERY EGR DELETE:

• 2x EGR blanking plate
• 1x EGR Gasket

SCOPE OF DELIVERY EGR & COOLER DELERE:

• 2x EGR blanking plate
• 1x EGR Gasket
• 2x Aluminium hose connector (Cooler Delete Only)
• 2x Silicone hose (Cooler Delete Only)
• 4x Jubilee Clamps (Cooler Delete Only)

The plate is supplied individually. It does not include coolant bypass components or replace the complete EGR valve and cooler assembly.

Complete the modification with ECU tuning

The plate handles the physical blanking, while the required ECU calibration addresses EGR operation and monitoring. Installing a plate without suitable calibration can trigger EGR-related fault codes, an engine warning light or limp mode.

If your vehicle still needs this calibration, select the mail-in ECU tuning option above when ordering. This service requires you to send your engine ECU to us. Customers who already have suitable EGR calibration can purchase the plate on its own.

For installation and tuning at our Sunshine Coast workshop, submit an online tuning enquiry with your vehicle details.

Intake cleaning alongside the installation

Blanking the EGR passage does not remove soot and carbon already deposited in the intake manifold. Where deposits are restricting airflow, cleaning the intake can address that existing buildup.

Euro Car Electronics offers intake manifold cleaning, with ultrasonic cleaning available for suitable removed components. Request an intake cleaning assessment to arrange this alongside the work.

Installation and ECU tuning are not included in the plate price. The mail-in ECU tuning service is charged separately when selected.

Frequently asked questions

Please Note: Once the valve is either removed or blanked off the vehicle's ECU will no longer get a signal from the EGR Valve causing the emissions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

Please Note: Euro Car Upgrades accepts no responsibility for the use of this part on the public roads where removal of emission controls is prohibited. It is the owners responsibility to ensure they comply with rules and laws relating to their home country.

Fits Models with EGR Gasket Part Numbers:

059131357H 059131357P

REMOVES EGR PIPE PART NUMBERS:

059131525CP 059131530T

Replaces EGR Cooler Part Numbers:

059131309C 059131501AB 059131501AC 059131501AJ 059131501M 059131508AD 059131511AJ 059131511BM 059131511CH 059131511DD 059131511BP

Compatibility:

• VW Amarok 3.0 TDI V6 (DDXA, DDXB, DDXC, DDXD, DDXE) – 2016–2022
• Audi A4 (B9) 3.0 TDI (CSWB, CRTC) – 2015–2019
• Audi A4 Avant (B9) 3.0 TDI – 2015–2019
• Audi S4 (B9) 3.0 TDI – 2016–2019
• Audi A5 / S5 Coupe/Sportback (B9) 3.0 TDI (CSWB) – 2016–2019
• Audi A6 (C7) 3.0 TDI (CRTD, CRTE, CRTF, CZVA) – 2011–2018
• Audi A6 Avant (C7) 3.0 TDI – 2011–2018
• Audi A6 allroad quattro (C7) 3.0 TDI (CZVF, CRTF, CZVA, CRTE, CRTD) – 2012–2018
• Audi S6 (C7) 3.0 TDI – 2012–2018
• Audi A7 Sportback (C7) 3.0 TDI (CZVF, CZVC, CZVD, CZVA, CRTE, CZVB, CZVE) – 2012–2018
• Audi Q7 (4M) 3.0 TDI (CZZB, CZZA, CRTE, CVMD, CVZA, CUEA, CRTC) – 2015–2019
